GLGpuSelect: Solving OpenGL’s Multi-GPU Problem Once and For All

The Multi-GPU Dilemma

GitHub Project LinkedIn Post

Today’s “solutions” for GPU selection in OpenGL are a mess of workarounds. You have to either:

• Manually configure each application in the NVIDIA Control Panel

• Add magic exports to your code (but only if you have an integrated GPU):

  1
  __declspec(dllexport) DWORD NvOptimusEnablement = 1;
  2
  __declspec(dllexport) int AmdPowerXpressRequestHighPerformance = 1;

• Navigate Windows Settings > Graphics settings and manually add each .exe file

• Use vendor-specific environment variables that only work on certain systems

Welcome to one of OpenGL’s most frustrating limitations - the lack of proper, cross-platform GPU selection. In an era where dual-GPU systems becoming more common, OpenGL applications are still struggling with something that should be trivial: choosing which GPU to use.

This is why I created GLGpuSelect - a drop-in replacement for opengl32.dll (Windows) and soon libGL.so (Linux) that finally brings per-application GPU selection to OpenGL without requiring any code changes.

Why This Problem Exists

OpenGL was designed in the early 1990s when multi-GPU systems were virtually non-existent. The API assumes a single graphics context bound to a single GPU. While extensions like WGL_NV_gpu_affinity and AMD_gpu_association exist, they come with significant limitations:

• WGL_NV_gpu_affinity only works on NVIDIA Quadro cards

• AMD_gpu_association requires AMD hardware

• Both require modifying your application code

• Neither provides a cross-platform solution

• System-wide GPU selection affects all applications, not just yours

The “modern” workarounds aren’t much better:

• NVIDIA Control Panel settings are per-executable and manual

• The NvOptimusEnablement / AmdPowerXpressRequestHighPerformance exports only work on systems with integrated GPUs and require recompiling

• Windows Graphics Settings require manual configuration for each application

• None of these solutions are portable or scriptable

The Technical Challenge

The core challenge is intercepting and redirecting OpenGL calls at the system level. When an application calls OpenGL functions, it goes through several layers:

1
Application  -> OpenGL API (opengl32.dll) -> GPU Driver -> Hardware

The ICD (Installable Client Driver) loader is responsible for routing calls to the appropriate driver. On Windows, this is typically handled by opengl32.dll, while on Linux it’s libGL.so. These system libraries were never designed with GPU selection in mind.

How GLGpuSelect Works

GLGpuSelect acts as a shim layer that intercepts OpenGL calls before they reach the system’s ICD loader:

1
Application -> GLGpuSelect -> Selected GPU's Driver -> Hardware

GPU Selection Methods

GLGpuSelect provides two ways to select a GPU:

Environment Variables (Zero code changes):

export `GLGPUS_ADAPTER_OS_INDEX`=1  # Select second GPU
./your_opengl_app

C API (For programmatic control):

1
#include <GLGpuSelect.h>
2

3
// Enumerate available GPUs
4
uint32_t deviceCount = 0;
5
glgpusEnumerateDevices(&deviceCount, NULL);
6

7
AdapterInfo* adapters = malloc(deviceCount * sizeof(AdapterInfo));
8
glgpusEnumerateDevices(&deviceCount, adapters);
9

10
// Select GPU by UUID
11
glgpusChooseDevice(adapters[0].Uuid);
12

13
// Continue with normal OpenGL initialization

The WGL Implementation

GLGpuSelect fully reimplements the entire WGL interface. In other words, it provides its own wgl* exports exactly as opengl32.dll would, so that every WGL call made by an application routes through GLGpuSelect. As a result, GLGpuSelect can control context creation, pixel‐format selection, and device‐context binding from the ground up.

The GPU Selection Process

GPU selection happens at the moment the application requests a pixel format, specifically when it calls either glgpusChooseDevice (if used) or wglChoosePixelFormat.

• Pre-selection via API: If your code calls glgpusChooseDevice before any OpenGL calls, GLGpuSelect locks in your chosen GPU immediately. All subsequent context creation steps automatically use that adapter.

• Fallback to Environment Variable: If you don’t call glgpusChooseDevice, the first invocation of wglChoosePixelFormat triggers GPU selection based on the GLGPUS_ADAPTER_OS_INDEX environment variable. In other words, as soon as wglChoosePixelFormat runs, GLGpuSelect reads GLGPUS_ADAPTER_OS_INDEX and binds the device context to that GPU.

No matter which path you take, once a GPU is bound at wglChoosePixelFormat, every later WGL call-context creation, swapping buffers, querying extensions uses the selected adapter.

Windows: D3DKMT

On Windows, GLGpuSelect taps into the lesser-known D3DKMT* API family-part of the Windows Display Driver Model (WDDM) kernel interface. These Direct3D Kernel Mode Thunk calls let you query adapters at a low level, without ever creating a Direct3D device.

Using D3DKMTEnumAdapters2 brings several key benefits over higher-level alternatives like DXGI:

• Zero extra setup: No DXGI factory or dummy device is needed-simply call the kernel API.

• Full adapter insights: Retrieve each GPU’s LUID, adapter type, driver version, and more in one go.

• Kernel-level accuracy: Pulls data directly from the display driver, ensuring it’s up-to-date and correct.

By building on D3DKMTEnumAdapters2, GLGpuSelect reliably discovers every available adapter.

Reverse-Engineering the Graphics Stack

Before diving into the ICD details, I spent significant time reverse-engineering the key pieces of the Windows OpenGL pipeline, namely opengl32.dll, the GDI layer, and both the AMD and NVIDIA ICD drivers, using Ghidra. This process revealed exactly how Windows routes OpenGL calls under the hood:

• opengl32.dll

  • By examining its entry points in Ghidra, I traced how calls to wgl* functions eventually dispatch into the system’s ICD loader.

• gdi32.dll

  • Functions such as GetPixelFormat and ChoosePixelFormat act as user-mode wrappers that dispatch to the corresponding WGL entry points in opengl32.dll

• AMD & NVIDIA ICDs

  • Disassembling each vendor’s drv export functions (for example, DrvSetPixelFormat, DrvCreateContext, DrvSetContext) showed me how they populate and return their internal function tables.
  • By mapping out their calling conventions and table layouts, I confirmed how to intercept and forward every OpenGL function pointer correctly.

Since there is essentially no official documentation on how all these pieces fit together, reverse engineering was the only way to uncover the precise mechanism. Without vendor or Microsoft guides, Ghidra became essential to decode how opengl32.dll, the GDI layer, and each vendor’s ICD collaborate.

The ICD Driver Interface

Once the correct GPU’s ICD is loaded, GLGpuSelect must also handle the low-level driver interface. The ICD exports a set of driver functions that opengl32.dll calls directly.

1
// Core driver functions that GLGpuSelect uses
2
DrvSetPixelFormat()      // Binds the pixel format to the HDC
3
DrvDescribePixelFormat() // Returns pixel format capabilities
4
DrvCreateContext()       // Creates the actual GL rendering context
5
DrvCreateLayerContext()  // Creates overlay/underlay contexts
6
DrvDeleteContext()       // Destroys contexts
7
DrvSetContext()          // Makes a context current, returns GL function table
8
DrvShareLists()          // Enables resource sharing between contexts
9
DrvCopyContext()         // Copies state between contexts
10
DrvSwapBuffers()         // Presents the rendered frame
11
DrvGetProcAddress()      // Returns extension function pointers
12
DrvValidateVersion()     // Validates driver compatibility

The most critical of these is DrvSetContext. When called, it returns a complete OpenGL function table containing pointers to all OpenGL functions 1.1 and below, which GLGpuSelect uses to route all OpenGL calls.

1. Call the real driver’s DrvSetContext to get the GPU-specific function table
2. Store this table associated with the context
3. Ensure all OpenGL calls are routed through the correct GPU’s function table

This is why GLGpuSelect can provide true per-application GPU selection - it controls the entire chain from WGL entry points through ICD loading to the actual OpenGL function dispatch.

Timeline

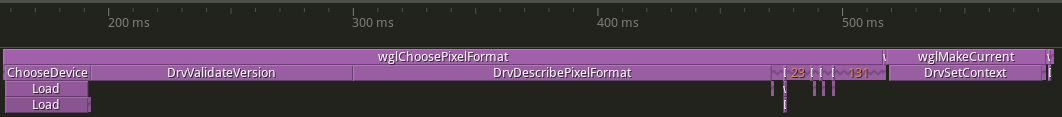

This timeline illustrates the key stages of how GLGpuSelect intercepts WGL calls and orchestrates GPU selection and context binding at runtime, in a scenario where glgpusChooseDevice is not explicitly called.

When the application starts, it invokes ChoosePixelFormat, triggering the following chain of events:

ChooseDevice

At the very beginning of the pipeline, GLGpuSelect’s custom ChooseDevice logic runs. Here, the system determines which physical GPU to use-based either on the environment variable GLGPUS_ADAPTER_OS_INDEX or internal logic

DrvValidateVersion

Immediately after selecting the GPU, GLGpuSelect calls the ICD’s DrvValidateVersion to verify compatibility. This ensures that the targeted GPU’s driver supports the expected interface. On NVIDIA systems, this call takes approximately 107 ms.

DrvDescribePixelFormat

Next, GLGpuSelect queries the ICD for available pixel formats on the selected GPU. The first call retrieves the number of supported formats (approx. 170 ms on NVIDIA). Subsequent, shorter calls (the smaller blocks in the timeline) are repeated invocations of DrvDescribePixelFormat used to fetch detailed descriptions of each pixel format, which the application uses to select an appropriate one.

DrvSetContext

Finally, when the application calls wglMakeCurrent, the ICD’s DrvSetContext is invoked. This is the point where the driver binds the rendering context to the selected GPU and returns its full OpenGL dispatch table (i.e., all OpenGL 1.1 function pointers). This setup takes around 62 ms on NVIDIA.

Linux: Coming Soon

Linux support is planned but not yet implemented.

The Road Ahead

GLGpuSelect is currently focused on Windows support, with Linux implementation planned. The core goal remains simple: provide a transparent, zero-configuration solution for GPU selection in OpenGL applications.

The project is open to contributions, especially from developers with experience in Linux graphics stack who want to help bring this functionality to more platforms.

Conclusion

GLGpuSelect solves a problem that shouldn’t exist. By providing a transparent, cross-platform solution for GPU selection in OpenGL applications, it removes a significant pain point for developers and users alike.

The fact that you can drop in a single DLL and suddenly have GPU selection in any OpenGL application feels almost magical - but it’s just good engineering solving a real problem.

OpenGL may be showing its age, but with tools like GLGpuSelect, we can modernize the experience without waiting for the industry to move on completely. Sometimes the best solutions are the ones that just work, requiring no changes to existing code while solving real problems.

You can find GLGpuSelect on GitHub, where it’s available under a dual GPL-3.0/Commercial license. Whether you’re a developer tired of fighting with GPU selection or a user who just wants their applications to use the right GPU, GLGpuSelect is here to help.
